UL Approved High-Sensitivity Fixed Gas Leak CH4 Detector with LCD Display

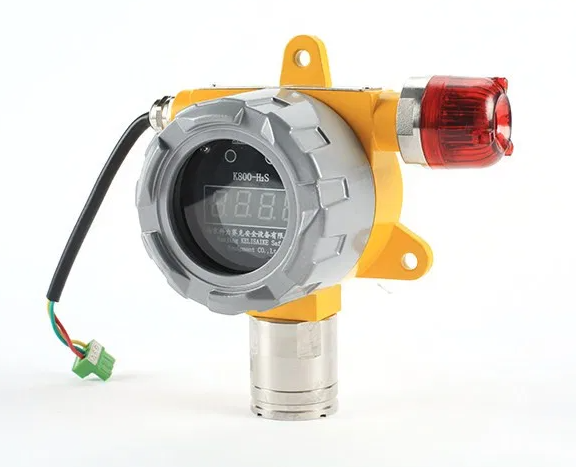

The K800 Series Fixed Gas Detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.
Key Features:
Application:

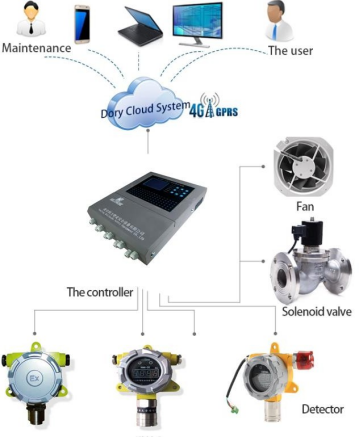

The detector working with gas controller are widely used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists, effectively protect personnel and plant from flammable, toxic and oxygen hazards.
Technical Specification:
| Item: |
K800 Fixed gas detector |
| Sensor Cell: |

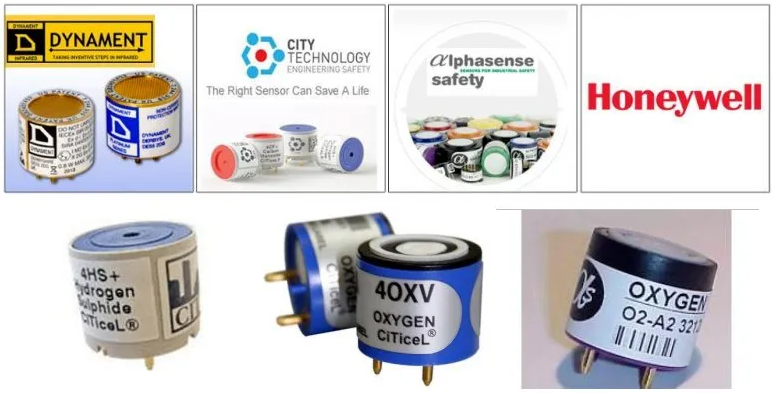

UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywellsensor), Japan and Germany sensors |
| Lifetime of Detector: |
2 - 5 years |
| Sample Mode |
Diffusion |
| Output Signals: |
4-20mA&RS485 |
| Operating Voltage: |
24V DC |
| Response Time |
T90≤30S |
| Suitable Cable |
RVVP3*1.5mm2 cable |
| Wiring |
3-wire/4-wire |
| Relay Output |
1 relay output |
| Operation Method |
with remote control |
| Ingress Protection |
IP66 |
| Body Material |
YL113 aluminum +304L S/S |
| Display |

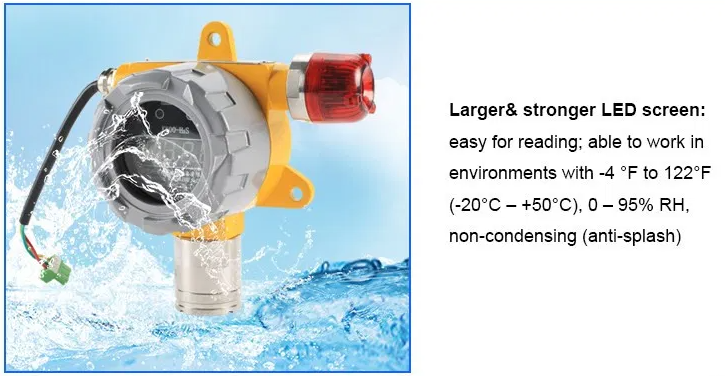

4 digital LED readout display (LCD display with power, fault,alarm-1,alarm-2 indicator light) |
| Transmission Cable |
Three core shield cable, 3×1.5mm |
| Ambient Temperature: |
- 20 ° C ~ + 50 ° C |
| Relative Humidity: |
10~90%RH(non condensation) |
| Working Pressure: |
86~106Kpa |
| Detection Precision: |
±5%FS |
| Net Weight: |
K800-N: 1.6kg K800-DA:2 kg |
| Dimension(mm): |
183×143×107mm |
| Certificates |
EN 61326-1:2013;
EX (Exd IICT6 Gb;Ex tD A21IP66T80°C);
SIL(SIL2);
UL 508
UL1203 |
| Explosion-proof Grade: |
Exd II CT6 |
| Protection Grade: |
IP65 |
Certificates:
HoneyweII & Alphasense & CITY
COMMONLY USED GAS DETECTION LIST
|
Gas Type
|
Detection Method
|
Detection Range
|
Operating temperature
|
Resolution
|
T90 Response Time
|
|
O2
|
Electrochem
|
0-25%vol/30%vol
|
-30℃~+60℃
|
0.1%vol
|
T90≤20s
|
|
CO
|
Electrochem
|
0-100ppm/500ppm/2000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤20s
|
|
H2S
|
Electrochem
|
0-100ppm/200ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NO2
|
Electrochem
|
0-10ppm/30ppm/100ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NO
|
Electrochem
|
0-100ppm/200ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤50s
|
|
CL2
|
Electrochem
|
0-20ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
H2
|
Electrochem
|
0-2000ppm/4%vol
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
SO2
|
Electrochem
|
0-200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
CL2
|
Electrochem
|
0-20ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
HCL
|
Electrochem
|
0-30ppm/200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
HCN
|
Electrochem
|
0-10ppm/200ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
NH3
|
Electrochem
|
0-100ppm/500ppm/1000ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤25s
|
|
O3
|
Electrochem
|
0-1ppm/10ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
PH3
|
Electrochem
|
0-5ppm/10ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤30s
|
|
CLO2
|
Electrochem
|
0-3ppm
|
-30℃~+60℃
|
0.1ppm
|
T90≤50s
|
|
H2
|
Catalytic
|
100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
CH4(CA)
|
Catalytic
|
0-100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
CH4(IR)
|
IR
|
0-5%vol/100%vol
|
-40℃~+60℃
|
0.1%vol
|
T90≤20s
|
|
VOCs
|
PID
|
0-50ppm/200ppm/1000ppm/5000ppm
|
-40℃~+60℃
|
0.1ppm
|
T90≤20s
|
|
CO2(IR)
|
IR
|
0-5%vol/100%vol
|
-40℃~+60℃
|
0.01%vol
|
T90≤20s
|
|
C3H8(IR)
|
IR
|
0-2%vol/100%vol
|
-40℃~+60℃
|
0.01%vol
|
T90≤20s
|
|
CxHy(IR)
|
IR
|
0-100%lel
|
-40℃~+60℃
|
1%lel
|
T90≤20s
|
|
SF6(IR)
|
IR
|
0-1000ppm/2000ppm
|
-40℃~+60℃
|
1ppm
|
T90≤20s
|
＞＞ Why Choose Us?
1.Mutual benefit :We are a factory.The price is much more competitive than others in the same quality.
2. Professional engineers:With 20+ years history, KELISAIKE has a professional engineering team: 4 engineers whohave more
than 20 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech manufacturing equipments,
we make more accurate and stable products.
3.Customize : We have strong R&D team, the custom product as your request are available.
4. Free OEM service : (a) Silk-printing your Logo(z100PCS). (b) Design your color box(z500PCS).
5.Mix order: We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) lf there's any inferior-quality products are found, new ones could be sent toreplace at free cost in the next order after confirmation.
＞＞ Our Service:
1.For all our customers, our products have 1 year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.Providing technical support, professional engineers are specialized in dealing with gas monitoring problems you met.
4. OEM and ODM service are welcome.
5.KELISAIKE plant is located in Nanjing, only 1 hour by high speedtrain from Shanghai. Welcome to visit the factory.
6.All products are well tested and packed before shipment; the certificate of inspection will be provided.
＞＞ FAQ
Q: Can l order one piece for sample to test the quality?
A:Yes,We recommend to check the sample before place an qty order.
Q: May I have your catalogue and price list for trial order in MOQ quantity?
A: All our products were shown on -line, please have a detailed looking and choose the interested models in our site. Oryou can send email to us.
Q: If l order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the ltem Number, Quantity for each item, Quality request,Logo,Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon aspossible.
